Rock Bevel Gear Solutions
WedgeRock RB Series Bevel Gear Line: a pinnacle of versatility and durability. Its modular design seamlessly integrates with various applications from Quarter-Turn to Rising Stem. Requiring zero maintenance, it’s 90% filled and greased for life. Achieving IP68 standards and holding Buy America, AWWA, and ATEX certifications, it’s ready for both Motorized and Manual inputs. Notably compatible with the RT & RTC Series bases and the RP Planetary Gear Series, it boasts an impressive output torque up to 1,000,000 In-Lbs [11,300 Nm]. Tailored for diverse settings with customized temperature ranges and direct mount features, the RB stands as a benchmark in actuation.
FEATURES
WedgeRock RB Series Bevel Gear
- Modular design accommodates multiple applications
- Optionally Self-Locking
- Mechanical stops for quarter turn rotation, ±5˚ adjustment at each stop
- 90% filled, Greased for life, no maintenance
- Designed and tested to IP68
- Input lockout
- Meets requirements of AWWA C500, C509 & C515
- Available Certifications:
- Buy America Compliant
- AWWA Compliant
- ATEX Compliant
- Modular design accommodates;
- Quarter-Turn
- Multi-Turn
- Rising Stem
- Non-Rising Stem
- Multiple Inputs
- Reversing Ratios
- Motorized and Manual input options
- Buried Service prep
- Risers and Adaptors
- Temperature range and materials configured per application
- Machined for direct mount
- Standard Flanges to MSS SP101/MSS SP102 & ISO 5211/ISO 5210
- Infinite Custom Bolt Pattern Options
OPTIONS
Configurations Available
- Quarter-Turn or Multi-Turn

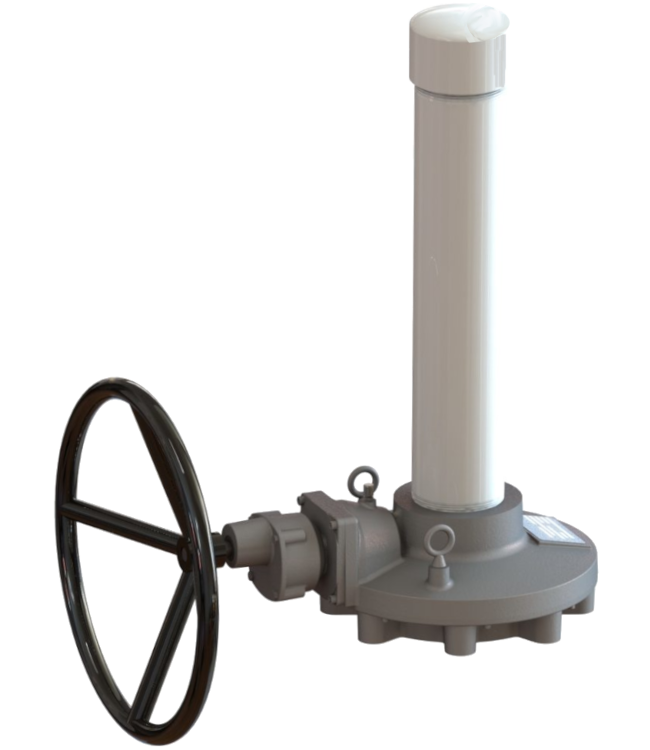

- Standard Manual (handwheel or 2″ nut)
- Motorized

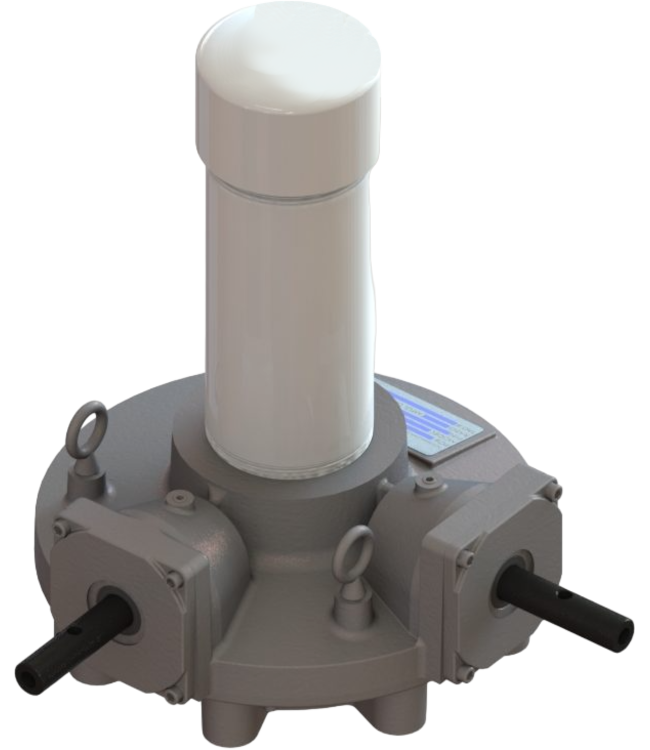

- Multiple Input

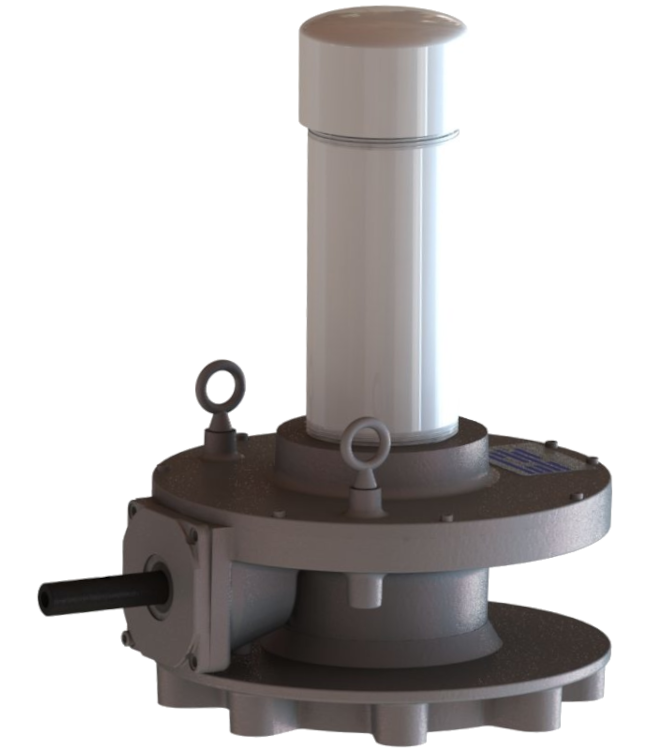

- Inverted (allows reversed input rotation)
- Compatible with RT & RTC Series bases. Increases Thrust & Temperature Driven Thrust Capacity
- Compatible with RP Planetary Gear Series. Increases Output Torque Capacity to 1,000,000 In-Lbs [11,300 Nm]
MODELS
WedgeRock RB Series Bevel Gear
Manual and motorizable bevel gear operators.
PRODUCT LITERATURE
Product Brochures
- WedgeRock RB Series Brochure
